- S1 type motor, which can work continuously.
- External 50mm large-channel vortex pump to prevent blockage.
- Oil cooled 304 stainless steel motor which have low operation noise and longer service life.
- Intelligent  controller - IoT Function, remote control, debugging, and push notifications.
- HD touch screen makes display and control more convenient.
- Precise electronic pressure sensor, which can monitor accurate liquid level and avoid winding.
- Adopt double-end mechanical seal and 150ml oil chamber seal.
- Fully enclosed HDPE container with 60 liters capacity.
- The protection grade is IP68-fully immersed (except for the controller).
- Flexibly-Connected Silent Swing Flap Check Valve.
- Φ75 large diameter liquid level detection sensor to avoid detection failure.
- 360 ° rotary high-pressure backwashing system (optional).
- Water seepage monitoring alarm and tap water shutoff linkage system (optional).
- Operation temperature max 60 ℃, it can reach 90 ℃ in a short time.

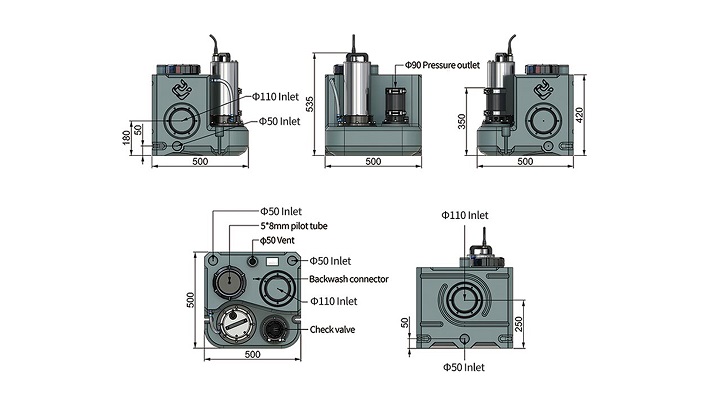

- Inlets：4×Φ110，5×Φ50
- Vent：φ50

- Sewage lifting and discharge from private basement’s bathrooms and kitchens in villas and large flat layer.
- Sewage lifting and discharge for restrooms and operational areas in new and renovated small-scale commercial facilities.

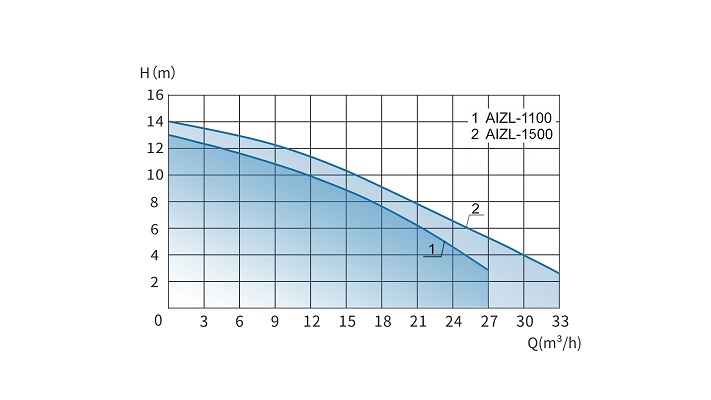

Type	P[Kw]	U[V]	I[A]	n[min-1]	Qmax[m3/h]	Hmax[m]	Solids handing[mm]	Weight [Kg]
AIZL-1100W	1.1kw	220V	7.9A	2800rpm	27m³/h	13m	50mm	41kg
AIZL-1500W	1.5kw	220V	9.5A	2800rpm	33m³/h	14m	50mm	43.5kg
AIZL-1100D	1.1kw	380V	2.2A	2800rpm	27m³/h	13m	50mm	41kg
AIZL-1500D	1.5kw	380V	3A	2800rpm	33m³/h	14m	50mm	43.5kg
