Intelligent Sewage Lifting Units
AIZL-750 Pro
Purchase
Product details
Product configuration

- Oil-cooled 304 stainless steel motor, offering low operational noise and an extended service life.

- S1 Duty External Large-Diameter Vortex Pump, preventing blockages and ensuring stable operation.

- Magnetic pneumatic valve, closed when not in use to prevent odor.

- Intelligent AIZL-ICM controller - IoT Function, remote control, debugging, and push notifications.

- Utilizes a more advanced, precise, and stable electronic liquid level pressure sensor.

- Double-end mechanical seal and a 150ml oil chamber seal for enhanced sealing integrity.

- Fully enclosed HDPE container with 21- liter capacity.

- Anti-clogging dual-seal flexible inlet connection technology.

- Flexibly-Connected Silent Swing Flap Check Valve.

- IP68 protection grade, fully immersed (except for the controller).

- Inlets::3×Φ110,5×Φ50

- Pressurized Outlet:1×φ50mm

Product application
Suitable for sewage discharge from private basement bathrooms and kitchens in villas and large apartment complexes.
Technical parameter

TypeP[Kw]U[V]I[A]n[min-1]Qmax[m³/h]Hmax[m]Solids handing[mm]Weight [Kg]
AIZL-750 Pro0.75kw220V6A2800rmp22.5m³/h11.5m40mm36kg

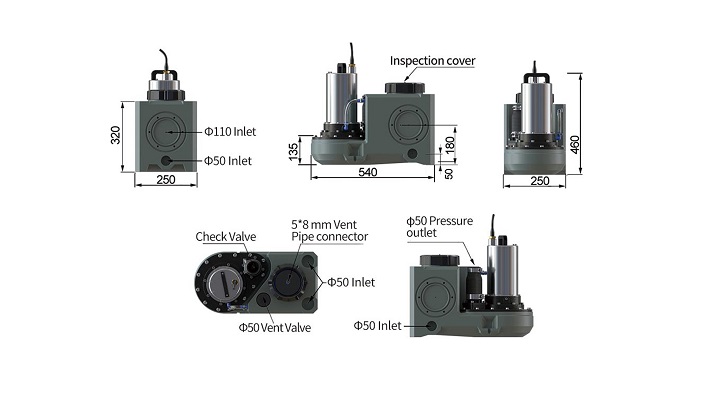

Product Dimensions

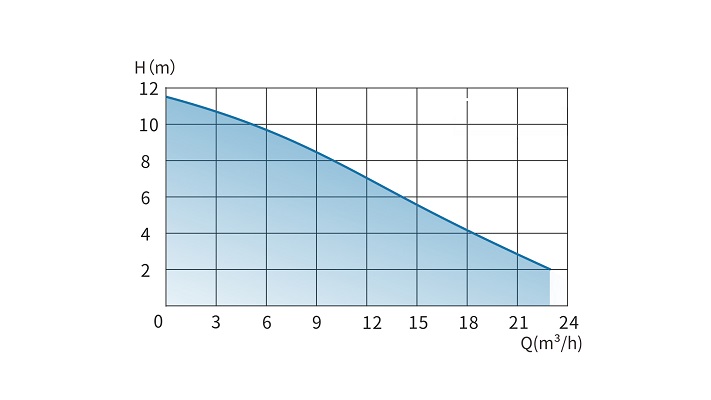

Performance curve
