Low Suction Pump
AIZL-25/40
Purchase
Product details
Product configuration
- Low-suction pump designed with corrosion-resistant and impact-resistant plastic and stainless steel.
- Protection grade IP68, can be completely submerged in water.
- Built-in motor winding protection and overload protection.
- Lip seal and additional shaft seal.
- Suction up to about 2mm.
- Cooling jacket single-phase motor.
- Solids handling: 5mm.
- Support both automatic and manual mode pumping.
- Integrated check valve.
- Working temperature max: 40℃.
- Waterproof cable: 10m
- 25mm hose or 1½″AG thread connection

Product application
- Discharge of clear water with particles less than 5mm, such as: basements, ponds and wells
- Portable water pump for emergency drainage
Technical parameter

TypeP[Kw]U[V]I[A]n[min-1]Qmax[m³/h]Hmax[m]Solids handing[mm]Weight [Kg]
AIZL-250.25kw220V2A2800rpm6m³/h6m5mm3.9kg
AIZL-400.40kw220V3.2A2800rpm7m³/h7m5mm4.3kg

Product Dimensions

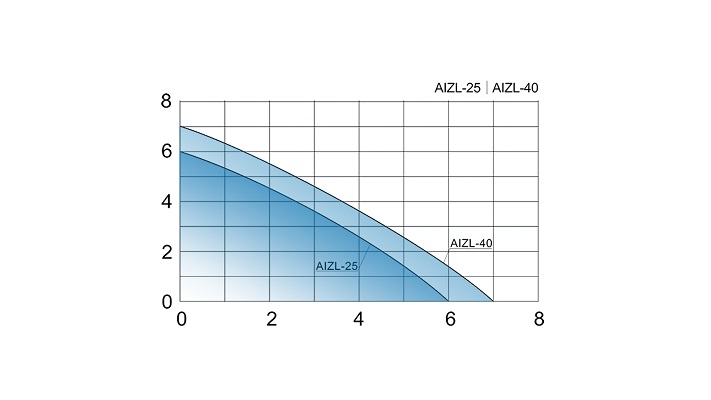

Performance curve
